Biosafety Cabinet

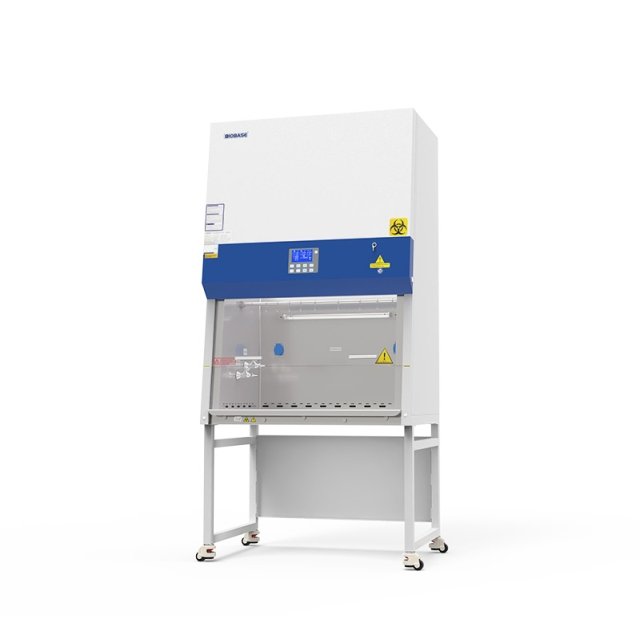

EN Certified Biological Safety Cabinet with LCD Display

Model

BSC-3FA2 BSC-4FA2

Brand

BIOBASE
Get Price

Product Description


Features:

1. Large LCD display, all information displayed.

2. Automatic air speed adjustable with filter block.

3. With memory function in case of power-failure.

4. Side & back wall is made up of single piece stainless steel.

5. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.

6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.


3fa2

Technical Parameters:

Model

BSC-3FA2

BSC-4FA2

External Size(W*D*H)

1087*775*2265mm

1383*775*2295mm

Internal Size(W*D*H)

910*600*660mm

1210*600*660mm

Work Surface Height

750mm

Max Opening

520mm (21″)

550mm (22″)

Tested Opening

Safety height 200mm (8″)

Airflow Volume

Inflow

348m³/h(205cfm)

462m³/h(272cfm)

Down Flow

65%: 649m³/h(382cfm)

65%: 863m³/h(507cfm)

Exhaust

35%: 348m³/h(205cfm)

35%: 462m³/h(272cfm)

Front Window

Manual. Laminated toughened glass. Anti UV

HEPA Filter

Two, 99.995% efficiency at 0.3μm, filter life indicator

Filter Guard Type

Aluminum alloy frame

Noise

EN 12469≤65dB

Illumination

≥1000Lux

Display

LCD display

Waterproof Socket

2, total consumption: ≤500W

Tap

Water tap*1, Gas tap*1

Ground Resistance

≤ 0.10Ω

Power Supply

AC230V, 50Hz

Consumption

≤550W

≤650W

Alarm

Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm

Motor

AC motor, 230V acceptable, speed adjustable, high efficiency and low power consumption

Material

Working area: 304 stainless steel

Frame and decorative plate: cold-rolled steel with anti-bacteria power coating

UV Lamp

20W

30W

Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination, UV timer, UV life indicator

LED Lamp

10W*2

18W*2

Standard Accessory

LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless steel I.V. bar with 10 hooks, Remote control

Optional Accessory

Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer,
Electric height adjustable base stand, Motorized front window

Package Size (W*D*H)

1240*1060*1900mm

1540*1080*1900mm

Gross Weight

270kg

340kg



Download: 05-06 EN Certified Biological Safety Cabinet.jpg05-06 EN Certified Biological Safety Cabinet
