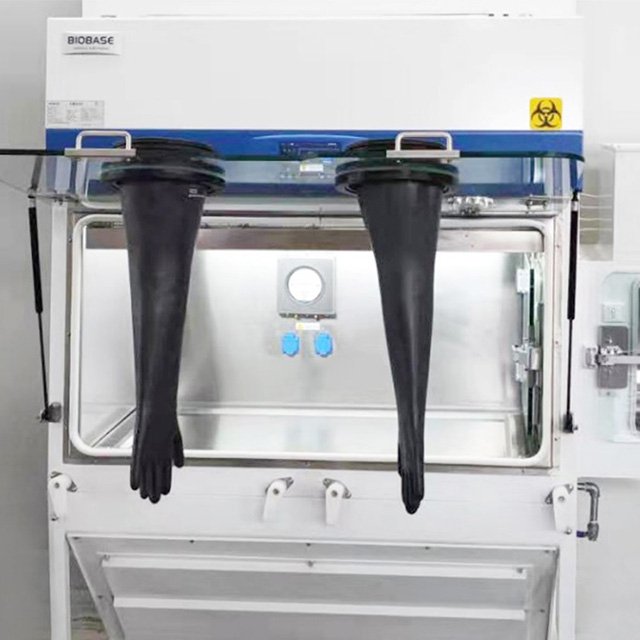

Biosafety Cabinet

Class III Biological Safety Cabinet Level 3

Model

BSC-1100IIIX-H BSC-1500IIIX-H

Brand

BIOBASE

Product Description


Features:

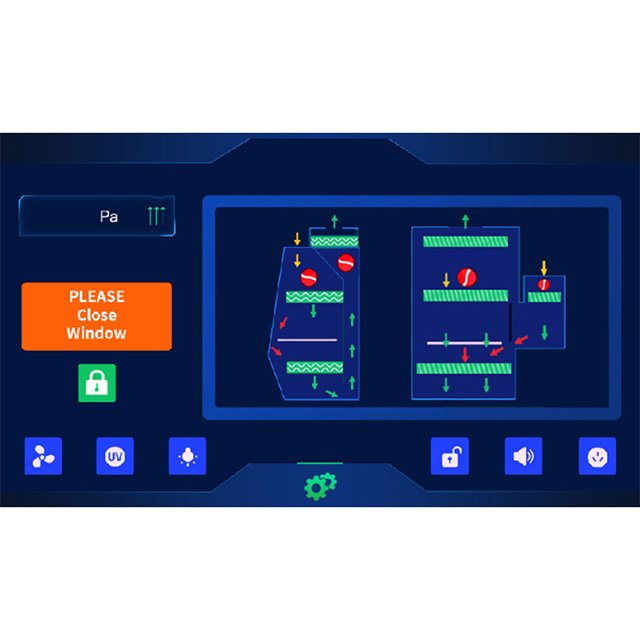

1. 7-inch touch color display screen: Touch operation, real-time, more clear and dynamic display of various values.

2. Power-off memory, restore the state before power-off after power-on, and have visual prompts to alarm.

3. Screen lock function: Touch the screen lock button lightly, and the operation interface is locked to prevent mis-operation and facilitate management.

4. The three side walls of the working area adopt high-quality 304# stainless steel integrated structure, which is easy to clean.

5. The work surface is made of high-quality 304# stainless steel, which is designed in a basin shape and is easy to clean.

6. Convenient front window design, the front window glass can be opened and closed freely, which is convenient for putting in large equipment and cleaning operations.

7. The work surface can be easily lifted or taken out, which is convenient for cleaning and disinfection operations.

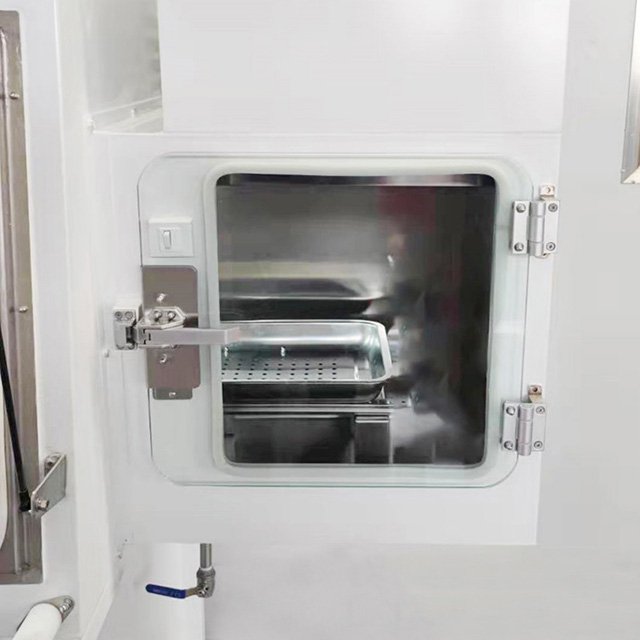

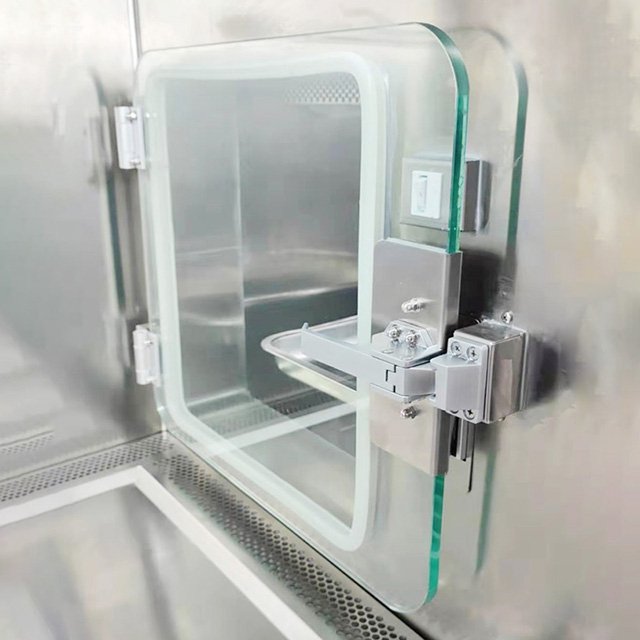

8. The magnetic opening and closing design of the transmission window, the interlocking device of the transmission window, and the independent negative pressure cycle structure protect the safety of the operator.

9. The cabinet body and the top of the transfer window are equipped with a pre-filter to effectively prolong the service life of the main filter.

10. The whole machine is equipped with four ULPA ultra-high efficiency filters.

11. The design of butyl rubber gloves has good corrosion resistance, and the replacement of gloves is simple and convenient.
BSC-1100X-H

Technical Parameters:

Model

BSC-1100IIIX-H

BSC-1500IIIX-H

External Size

1667*950*2180mm

1920*950*2180mm

Internal Size

917*640*600mm

1170*640*600mm

Pass Box Size

580*440*560mm

580*440*560mm

Gloves

One pair of 800mm butyl rubber gloves

Front Window

12mm tempered glass, anti-ultraviolet radiation

Display

Touch LCD display

Pre-filter

Polyester fiber, washable

Pressure

Negative, ≥120Pa

ULPA Filter

Operating area supply air filter: 99.9995%(0.12μm in diameter)
Base cabinet exhaust filter: 99.9995%(0.12μm in diameter)
Top exhaust filter: 99.9995%(0.12μm in diameter)
Pass box supply air filter: 99.9995%(0.12μm in diameter)

Noise

≤67dB

Alarm

Audio and visual alarm, abnormal pressure

Work Zone Material

304 stainless steel

lllumination

≥1000lux

Consumption

1200W

1300W

LED Lamp

12W*2

14W*2

UV Lamp

20W*2, 8W*1

30W*2, 8W*1

Emission of 253.7nm for most efficient decontamination

Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz

Packing Size

1810*1100*2350mm

2060*1100*2350mm

Gross Weight

420kg

480kg
