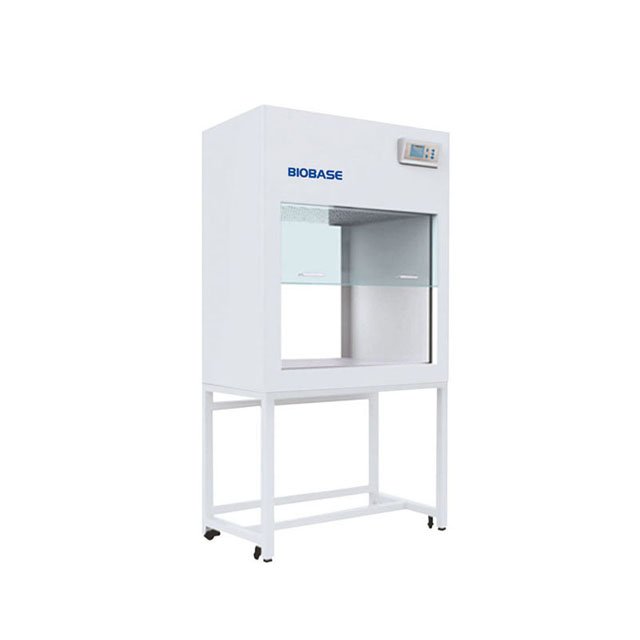

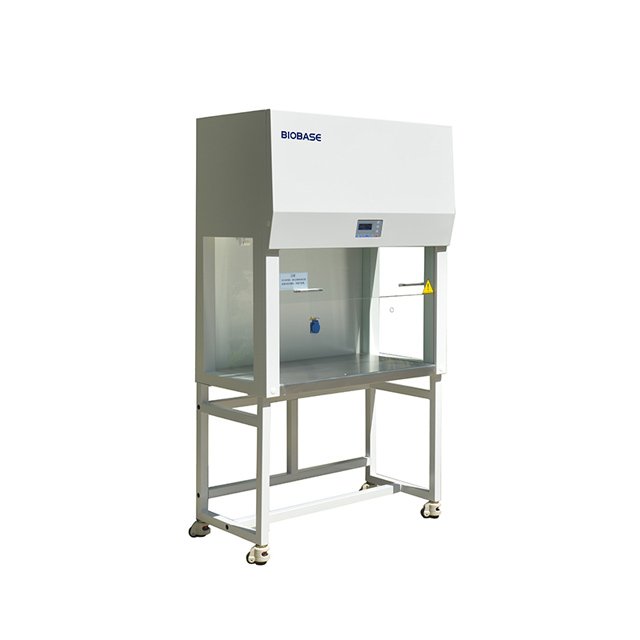

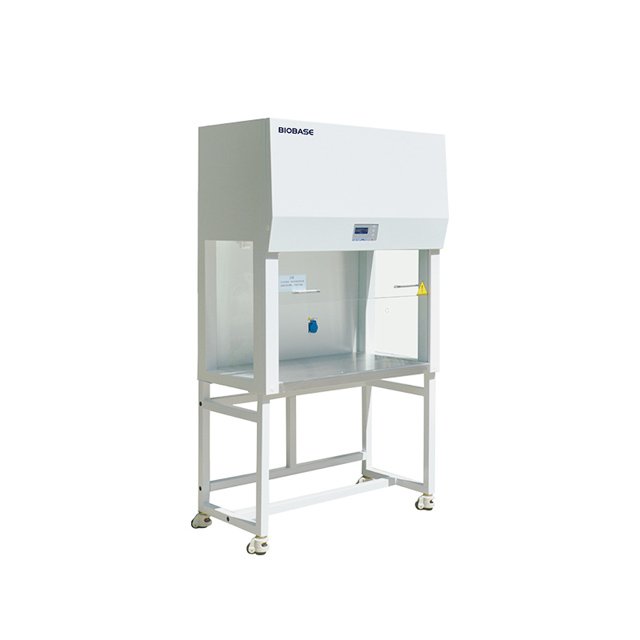

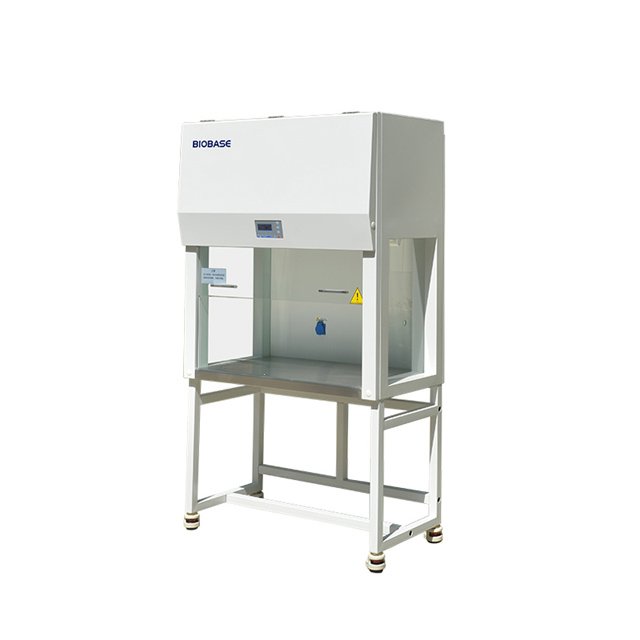

Vertical Laminar Flow Cabinet BBS-V680 BBS-V800 BBS-DDC BBS-SDC

Laminar Flow Cabinet

Model	BBS-V680, BBS-V800, BBS-DDC, BBS-SDC
Brand	BIOBASE

Technical Parameters:

Model	BBS-V680	BBS-V800	BBS-DDC	BBS-SDC
External Size (WDH)	6804101160mm	8026501640mm	10606201850mm	14606201850mm
Internal Size (WDH)	630375615mm	800530540mm	935530650mm	1335530650mm
Work Surface Height	/	750mm	750mm	750mm
Display	LED display		LCD display
Airflow Velocity	Average of 0.3~0.5m/s, air speed adjustable		Average of 0.3~0.45m/s, air speed adjustable
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
Material	Work Table: 304 stainless steel(except model BBS-V680)
Pre-filter	Polyester fiber, washable
HEPA Filter	99.995% efficiency at 0.3μm
Noise	<65dB
Front Window	/	Manual, 5mm toughened glass, anti-UV
Max Opening	/	490mm	400mm	400mm
Illuminating Lamp	Fluorescent lamp 8W*1	LED lamp 8W*1	LED lamp 12W*1	LED lamp 16W*1
UV Lamp	15W*1	20W*1	20W*1	40W*1
UV Lamp	Emission of 253.7 nanometers
Consumption	160W	350W	150W	250W
Standard Accessory	Fluorescent lamp UV lamp*2 Water&gas tap	LED lamp UV lamp*2 Base stand	LED lamp UV lamp*2 Base stand	LED lamp UV lamp*2 Base stand
Optional Accessory	/	Electric height adjustable base stand
Caster	/	Universal wheel with leveling feet
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	75kg	116kg	177kg	224kg
Package Size (WDH)	8405701360mm	9609301200mm	12359201355mm	16359201355mm
