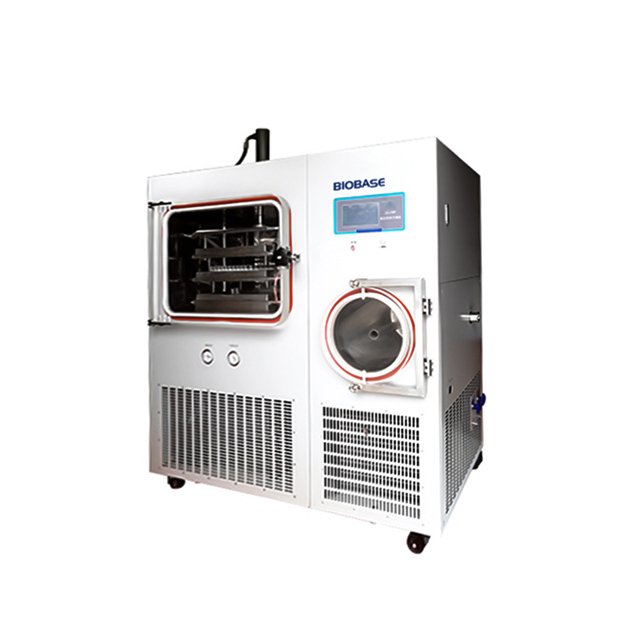

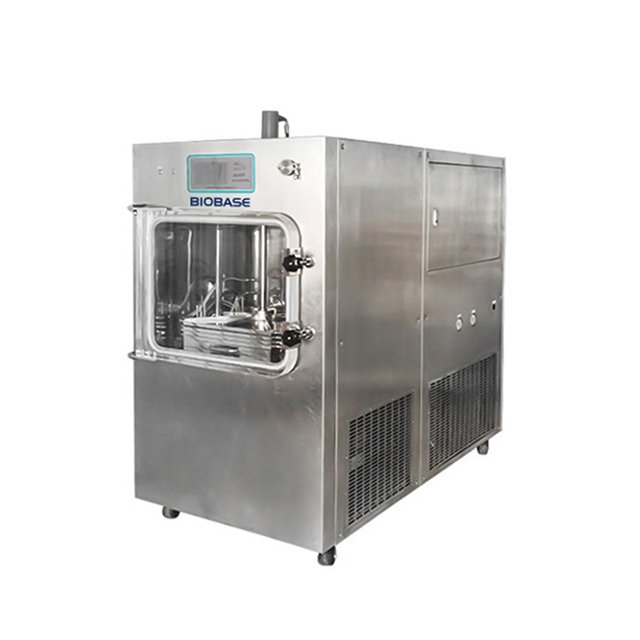

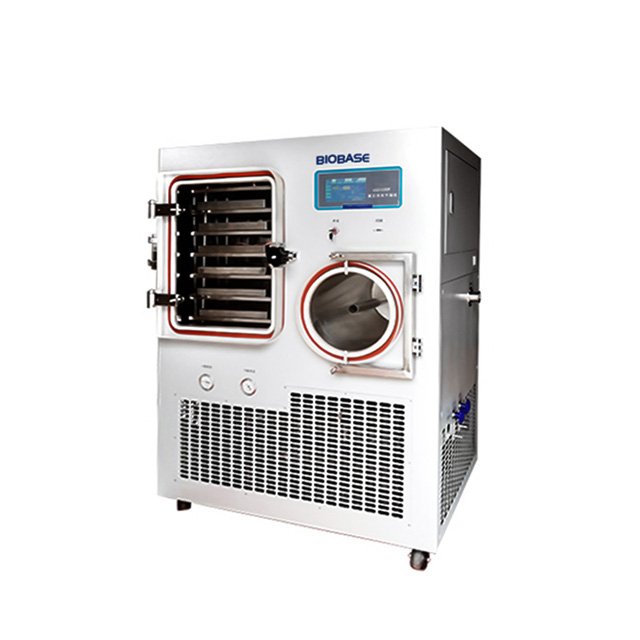

Pilot Freeze Dryer
BK-FD50S BK-FD50T BK-FD100S BK-FD100T
|
Model
|
BK-FD50S, BK-FD50T, BK-FD100S, BK-FD100T
|
|
Brand
|
BIOBASE
|
|
Price
|
Get Price
|
|
MOQ
|
|
|
Ship From
|
|
|
Shipping
|
|
Product Description
Technical Parameters:
Model | BK-FD50S
(Standard) | BK-FD50T
(Stoppering) | BK-FD100S
(Standard) | BK-FD100T
(Stoppering) |
Freeze Drying Area | 0.7m² | 0.5m² | 1.03m² | 1.15m² |
Shelf Temperature | -50℃~+70℃(no-loading) |
Cold Trap Temperature | <-80℃(no-loading) |
Vacuum Degree | ≤1 Pa(no-loading) |
Water Capture Capacity | ≥10kg | ≥15kg |
Cold Trap Volume | / | 70L |
Cold Trap Size (Diameter*H) | / | Φ400*560mm |
Drying Chamber Size (W*D*H) | 410*510*590mm | 620*510*580mm | 410*580*520mm | 700*590*760mm |
Shelf & Tray Size
(W*D*H) | Shelf: 480*360*18mm
Tray: 475*355*25mm | Shelf: 410*410*18mm
Tray: 405*405*25mm | Shelf: 480*360*18mm
Tray: 475*355*25mm | Shelf: 480*600*18mm
Tray: 475*595*25mm |
Qty. Of Shelf & Tray | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | Shelf: 6+1; Tray: 6 | Shelf: 4+1; Tray: 4 |
Sample Loading Capacity (Liquid) | 7L | 5L | 10L | 11L |
Height Between Trays | 50mm/70mm(0ptional) | 100mm | 70mm | 100mm |
Tray Temperature Difference | ±1℃ |
Refrigerant | R404A + R23 |
Condenser Cooling Mode | Air cooling |
Defrost Mode | Natural defrosting(optional electric defrosting) | Electric defrosting | Electric defrosting | Electric defrosting |
Stoppering Mode | / | Automatic | / | Automatic |
Total Qty. Of Vial | Φ22mm | / | 1050 | / | 2460 |
Φ16mm | / | 2058 | / | 4788 |
Φ12mm | / | 3075 | / | 8624 |
Vacuum Pump | 8L/S(29m³/h) | 15L/S(54m³/h) |
Electric Defrosting Consumption | / | 1000W | 1500W |
Silicone Oil Heating Rods Consumption | 1000W | 1600W |
Hydraulic Pressure Station Consumption | / | 1000W | / | 1500W |
Total Consumption | 5.5KW | 6.5KW | 6.5KW | 7.5KW |
Power Supply | AC380V, 50Hz/60Hz(three phase); BK-FD50S: AC220V, 50Hz/60Hz(single phase) |
Main Body Weight | 600kg | 800kg | 700kg | 1000kg |
External Size
(W*D*H)mm | 1008*823*1420 | 1405*911*1983 | 1190*876*1727 | 1640*1100*1630 |
Packing Size (W*D*H)mm | Main Body | 1130*950*1620/700kg | 1530*1030*2190/900kg | 1310*1000*1930/850kg | 1800*1250*2100/1200kg |
Gross Weight | Vacuum Pump | 790*330*445(73kg) | 830*370*600(88kg) | 785*455*300(95kg) | 800*500*500(70kg) |
Optional: Import vacuum pump, Vacuum pump anti-valve, Eutective point tester, Oil mist filtration system, Vacuum adjustment device.
