Incubator

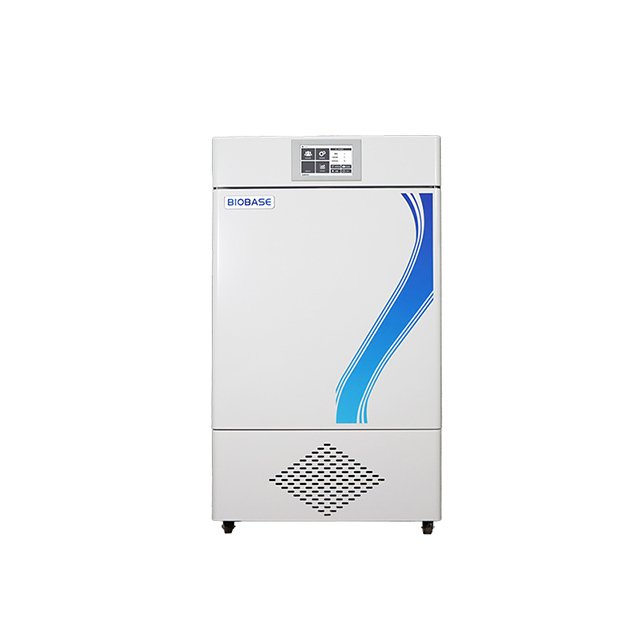

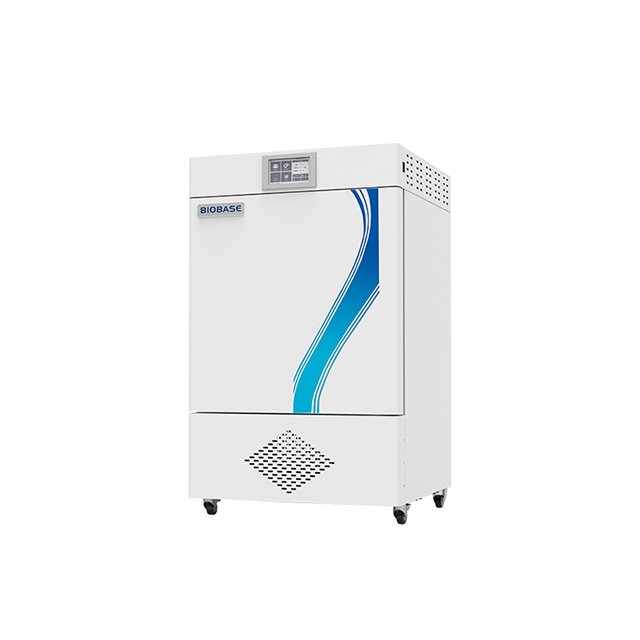

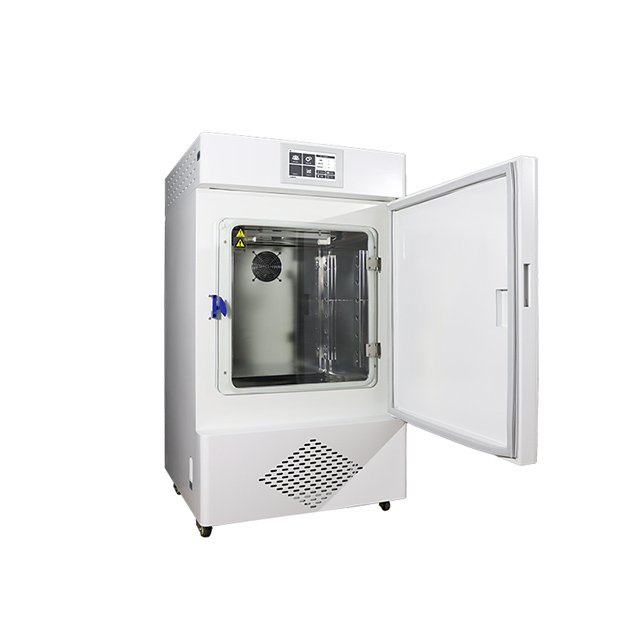

Low Temperature CO2 Incubator BJPX-C160III

Model

BJPX-C160III BJPX-C80III

Brand

BIOBASE

Product Description

Features:

1. IR infrared sensor, using dual-channel dual-filter infrared technology.

2. The inner tank is designed with semicircular corners and the surface is made of 304 stainless steel with electrochemical treatment.

3. Sloped bottom design for smooth drainage, preventing evaporator icing, and improved temperature uniformity.

4. The evaporator’s intake pipe uses a Sanhua solenoid valve to work in coordination with the evaporator’s compartmentalized operation, preventing icing, ensuring rapid cooling, and maintaining stable temperatures.

5. The timed segmented control program allows for the cultivation time and temperature to be preset and automatically adjusted according to requirements, providing convenience for the operator.

6. High-efficiency heating tubes are used to evenly heat all sides of the inner chamber.

7. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.

Standard Accessories:

1. USB port

微信截图_20220903153404


Technical Parameters:

Model

BJPX-C80III

BJPX-C160III

Type

Low temperature CO2 incubator, air jacket

Sterilization Type

UV sterilization

Capacity

80L

160L

Temp. Sensor

PT100

Temp. Range

10~60℃

Temp. Fluctuation

±0.3℃(@37℃)

Temp. Uniformity

±0.5℃(@37℃)

Temp. Precision

0.1℃

Timing Range

0~999h or continuous

Display

7-inch touch screen

CO2 Control

IR infrared sensor with calibration certificate

CO2 Range

0~20vol%

CO2 Uniformity

0.2vol%

CO2 Control Resolution

0.1vol%

Ambient Temperature and Humidity

Ambient Temperature: 5~30℃(Recommendation: 25±2℃)

Ambient Humidity: ≤80%

Filter

CO2 gas filter

Power Supply

Standard: AC220V, 50/60Hz

Optional: 110V, 50/60Hz

Wiring Method: plug

Consumption

1000W

Shelves

2pcs, adjustable

Standard Accessories

Shelves, USB interface, CO2 relief valve, water tank, CO2 gas filter

Optional Accessories

Water pump, three-way connector

Internal Size(W*D*H)

470*362*500mm

588*470*620mm

External Size(W*D*H)

689*729*1241mm

810*748*1330mm

Package Size(W*D*H)

820*820*1390mm

904*842*1467mm

Net Weight

93kg

144kg

Gross Weight

115kg

165kg
