Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process.
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.
5. PLC touch screen control with preset 12 programs and 99 cutomized programs.
6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

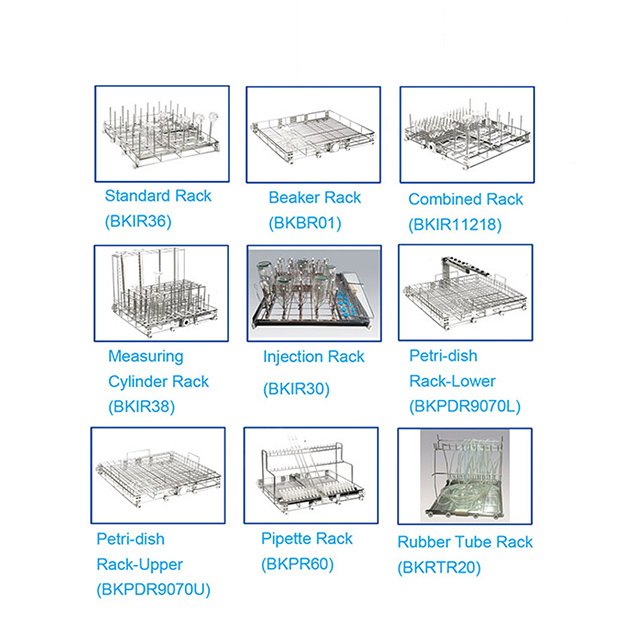

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:
Technical Parameters:
Model | BK-LW120 | BK-LW220 | BK-LW320 |
Cleaning | Capacity(L) | 120 | 220 | 320 |
Washer Load Level | 1 | 2 | 3 |
Water Wash Power(KW) | 0.4 | 0.75 | 1.5 |
Water Heater Power(KW) | 5 | 5 | 15 | 5 | 15 |
Max. Power(KW) | 6 | 6 | 16 | 7 | 17 |
Water Consumption/Step(L) | 17 | 20 | 22 |
Tank Internal Temperature(℃) | 0~99 |
Water Supply Pressure(Mpa) | 0.3~1.0 |
Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent |
Cleaning Agent Level Sensor | YES |
Washing Pump | Sweden 430L/min | Sweden 800L/min | Sweden 1000L/min |
Standard Cleaning Racks | BKIR36*1 | BKIR36*2 | BKIR36*3 |
Drying | Drying Function | YES |
Steam Condenser | YES |
Dry Power(KW) | 3 | 3.6 | 3.6 |
Control System and Traceability | Control System | 7″ color LCD touch screen display, microprocessor |
Cleaning Program | 12 pre-set programs(editable)+99 PLC free programming |
Password Protection | 3 levels password |
Safety Emergency Button | YES |
USB Port | YES |
Integrated Printer | Optional |
Online Monitor Performance of Washing | Optional
|
Dimensions&Weight | Chamber Dimension(W*D*H, mm) | 600*629*539 | 600*629*754 | 600*629*915 |
Exterior Dimension(W*D*H, mm) | 980*740*870 | 693*790*1825 | 693*790*1985 |
Package Dimension(W*D*H, mm) | 1110*940*1075 | 810*990*2015 | 810*990*2185 |
Net Weight(Host only, kg) | 169 | 220 | 237 |
Gross Weight(Host with rack, kg) | 200 | 300 | 320 |
Others | Door | Double-layered glass door |
Safety Door Lock | YES |
Built-in RO Water Pump | YES |
Noise(dB) | <50 | <55 |
Voltage(V/Hz) | Standard: AC220V, 50Hz Optional: AC110V, 50/60Hz; 220V, 60Hz | Standard: AC220V, 50Hz or 380V, 50Hz; Optional: AC110V, 50/60Hz; 220V, 60Hz(Single-phase); AC220V, 60Hz; 380V, 60Hz(Three-phase)
|
