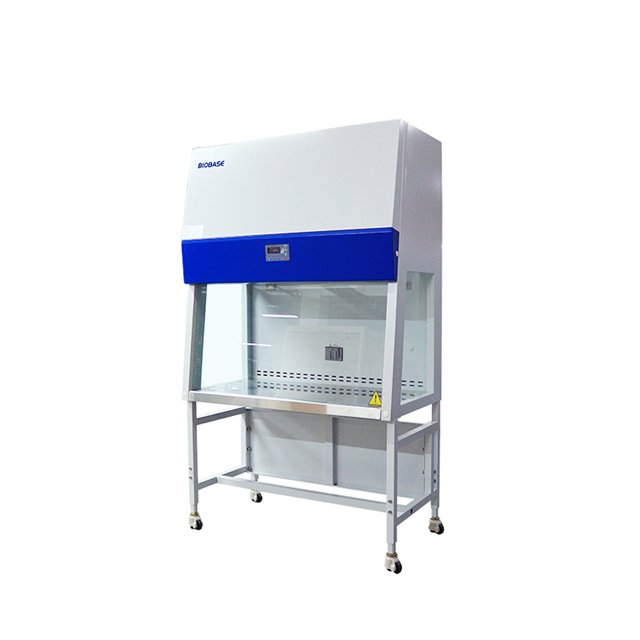

ETL Certified Vertical Laminar Flow Cabinet

Laminar Flow Cabinet

Model	BBS-V800, BBS-V1100, BBS-V1300, BBS-V1500, BBS-V1800
Brand	BIOBASE

Features:
1. ETL certified, satisfy north american market.

2. With memory function in case of power-failure.

3. Audio and visual alarm(Abnormal airflow velocity).

4. Interlock function: UV lamp and blower, LED lamp.
BBS-V800

Technical Parameters:

Model	BBS-V800	BBS-V1100	BBS-V1300	BBS-V1500	BBS-V1800
External Size(WDH)	800700(2090~2340)mm	1100700(2090~2340)mm	1300700(2090~2340)mm	1500700(2090~2340)mm	1800700(2090~2340)mm
Internal Size(WDH)	700575625mm	1000575625mm	1200575625mm	1400575625mm	1700575625mm
Work Surface Height	760~1010mm
Max Opening	480mm
Display	LCD display
Airflow Velocity	80~99fpm
Material	Working Area: 304 stainless Steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Front Window: Motorized, 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤68dB(A)
Illumination	≥300lx
Waterproof Sockets	One socket(Double type), America standard, Max. Power: 500W
Power Supply	103.5~126.5V, 60Hz,10A
Consumption	900W	1110W	1110W	1110W	1250W
UV Lamp	20W*1	30W*1	30W*1	40W*1	40W*1
LED Lamp	10W*1	14W*1	14W*1	18W*1	22W*1
Standard Accessory	Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket
Package Size （WDH）	9459901610mm	12459901610mn	14459901610mm	16459901610mm	19459901610mm
Gross Weight	190kg	230kg	265kg	280kg	320kg
