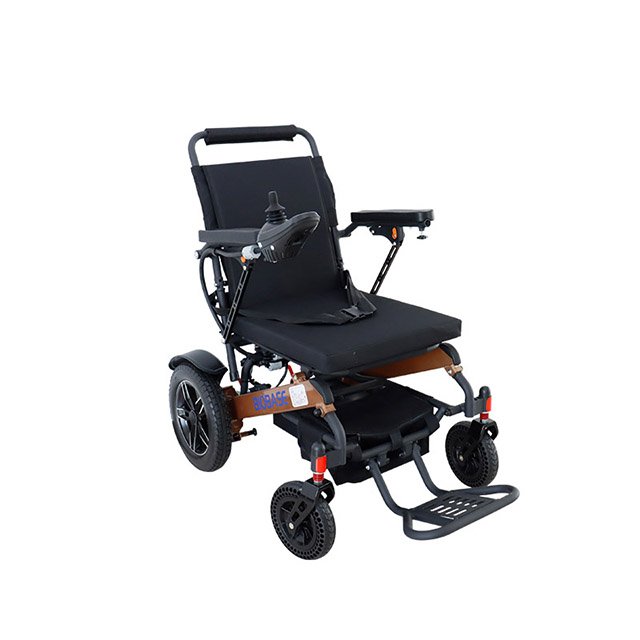

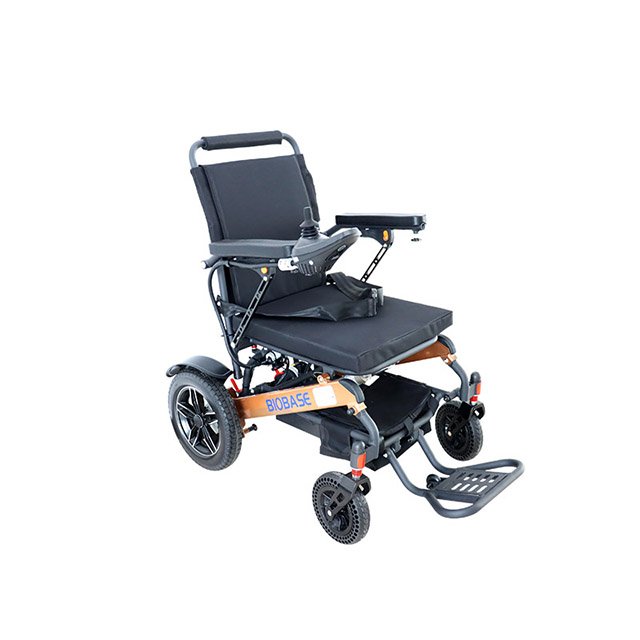

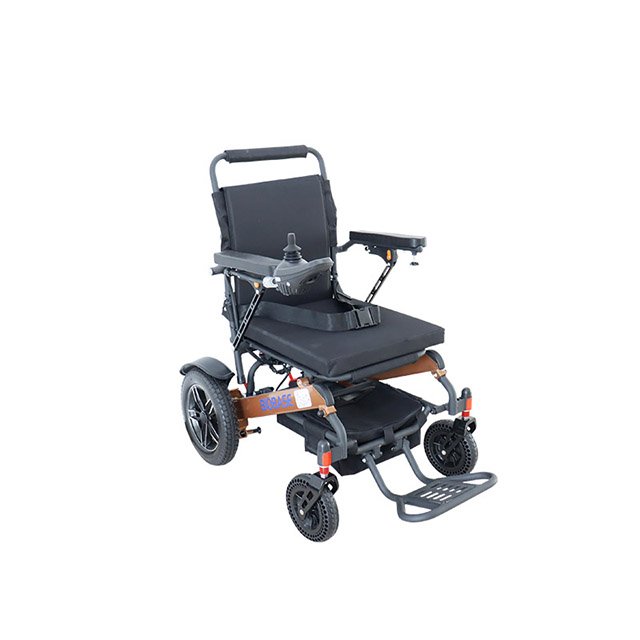

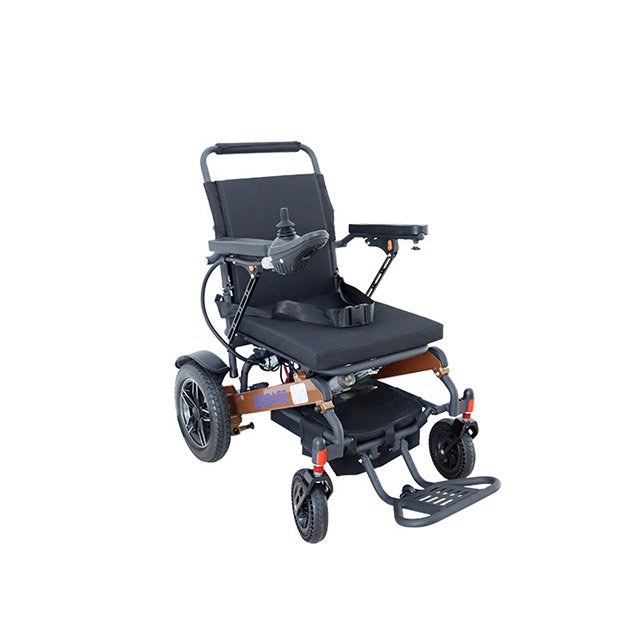

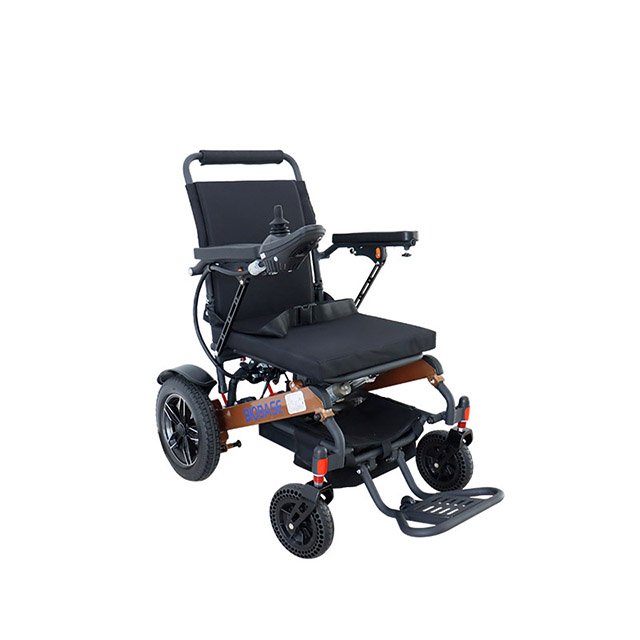

Electric Wheelchair MFN803 Series

Wheelchair

Model	MFN803A MFN803B MFN803C MFN803D MFN803E MFN803F
Brand	BIOBASE

Features:

1. Humanized intelligent controller, 360°sensitive control, mobile APP control.

2. Front wheel honeycomb wheel, rear wheel aluminum alloy hub tires, good shock absorption function.

3. High efficiency energy-saving dual motor, hand/electric mode one key switch.

4. Intelligent electromagnetic brake system.

5. Durable lithium battery, stable power supply performance, easy to disassemble.

6. High elastic memory sponge back cushion, cushion comfortable and smooth.

7. Aviation aluminum alloy frame, bearing 120kg, optional color can be customized.
MFN803A

Technical Parameters:

Model	MFN803A	MFN803B	MFN803C	MFN803D	MFN803E	MFN803F
Front Wheel Diameter	8 inches
Rear Wheel Diameter	12 inches
Seat Width	460mm
Seat Depth	420mm
Seat Height	510mm
Instrument Size	1040630980mm
Max Speed	4.5km/h
Endurance Mileage	Standard: 15~20km Optional: 7.5~10km, 20~25km
Climbing Ability	≥3°
Loading Capacity	120kg
Fold Mode	Manual	Electric	Manual	Electric	Electric	Manual
Back Lying Mode	/		Manual		Electric
Back Lying Angle	/		100~135°
Battery	Lithium batteries Standard: 24V12Ah Optional: 24V6Ah, 24V20Ah
Power Supply	AC100~240V, 50/60Hz
Standard Accessory	Water cup holder or umbrella stand
Optional Accessory	Honeycomb rear wheel, adjustable headrest, leg lift device, water cup holder, umbrella stand
Package Size	670430870mm
Net Weight	27.5kg	28.7kg	28.2kg	29.6kg	33kg	29.2kg
Gross Weight	35kg	37kg	36kg	37kg	41kg	37kg
