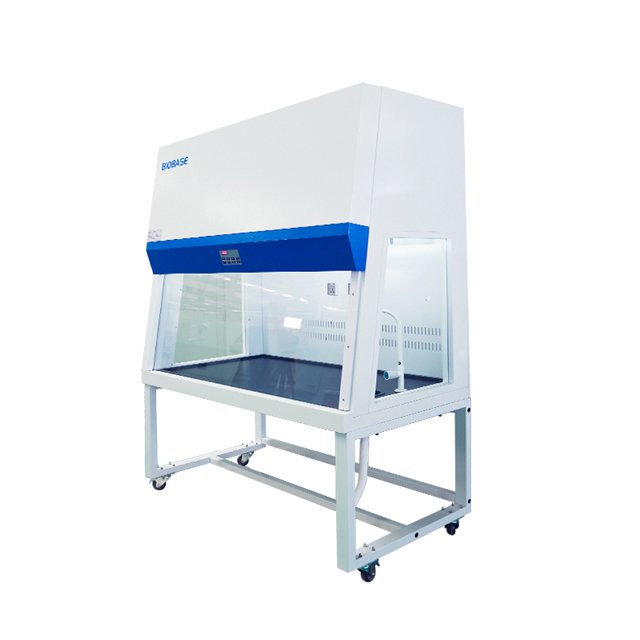

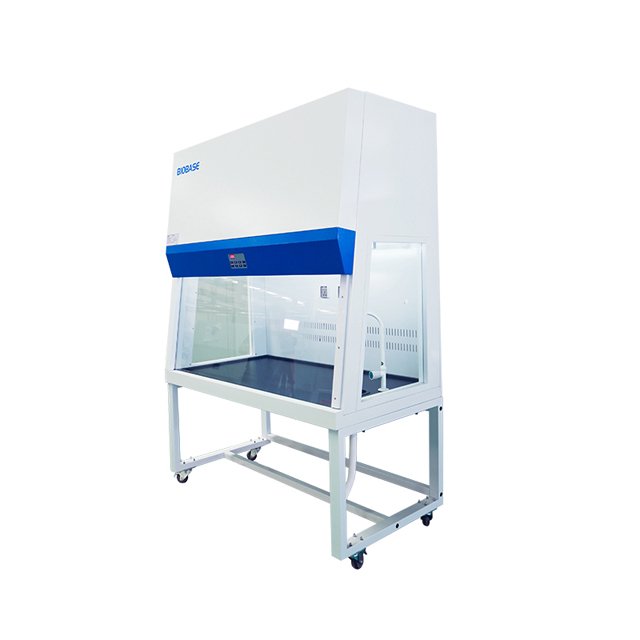

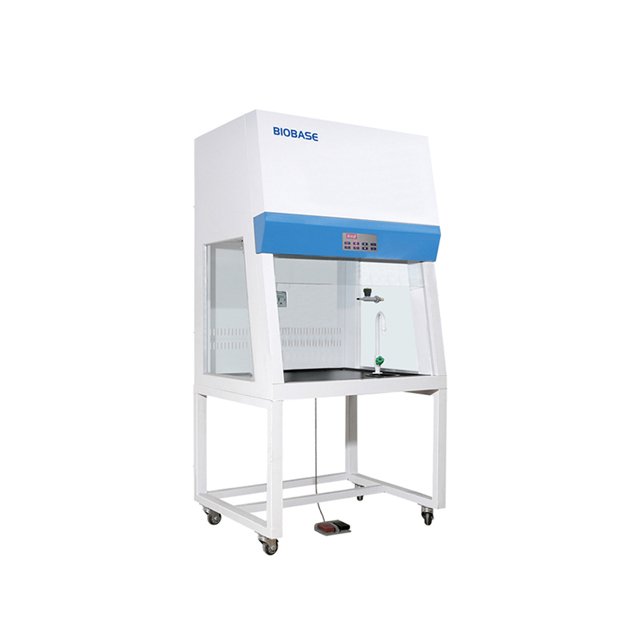

Ducted Fume Hood FH(X)

< Back

Fume Hood

Model	FH1000(X), FH1200(X), FH1500(X), FH1800(X)
Brand	BIOBASE

Get Price

Product Description

Features:
1. UV lamp for sterilization.
2. Motorized front glass window.
3. Resistant to weak acid and alkali.
4. Adjustable air speed: 9 levels.
5. Alarm when filter working time 3500 hours.
6. With memory function in case of power-failure.
7. Back side air compensation, to avoid turbulence in work area.
8. 8°slope front ergonomics design, fatigue-free working posture.

9. Microprocessor control system, LED display shows filter working time.

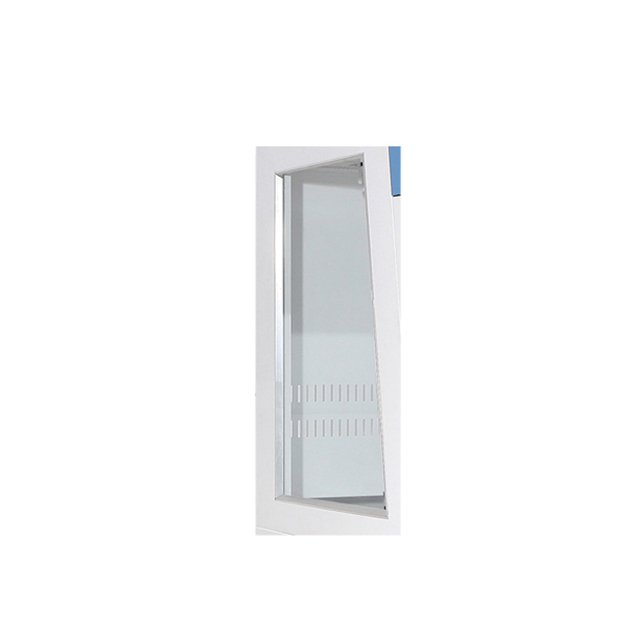

10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment. FH-1000X Technical Parameters:

Model	FH1000(X)	FH1200(X)	FH1500(X)	FH1800(X)
External Size(WDH)	10008402150mm	12008402150mm	15008402150mm	18008402150mm
Internal Size(WDH)	880730745mm	1080730745mm	1380730745mm	1680730745mm
Max Opening	520mm
Work Surface Height	750mm
Blower	Built-in centrifugal blowers, Speed adjustable with 9 levels
Air Velocity	0.3~0.8m/s
System Exhaust Volume	630m³/h	780m³/h	990m³/h	1210m³/h
Noise	≤68dB
LED Lamp	8W*1	12W*1	16W*1	16W*1
UV Lamp	20W Emission of 253.7 nanometers for most efficient decontamination
Front Window	Motorized, 5mm toughened glass, anti-UV
Front Window	Exterior Body: Cold-rolled steel with anti-bacteria powder coating
Material	Work Table: Chemical resistant phenolic resin
Waterproof Socket	1pc	2pcs	2pcs	2pcs
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	400W	400W	500W	500W

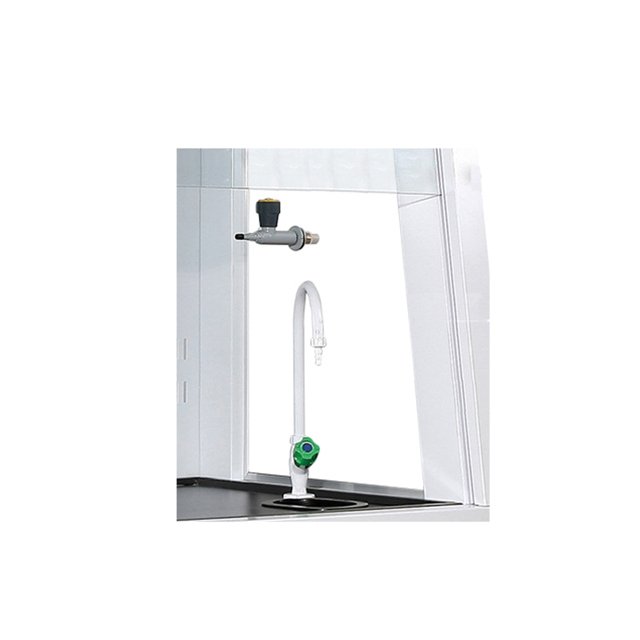

Standard Accessory	Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch
Optional Accessory	HEPA filter
Gross Weight	230kg	253kg	290kg	340kg
Package Size(WDH)	115011201680mm	135011201680mm	165011201680mm	195011201680mm
