Ducted Fume Hood

Fume Hood

Model	FH700(L) FH1000(L) FH1100(L) FH1200(L) FH1300(L) FH1500(L) FH1800(L)
Brand	BIOBASE

Features:

1. With memory function in case of power-failure.

2. Adjustable air speed.

3. Motorized front window, height adjustable.

4. The operation area adopts compact laminate board, with high corrosion resistance.

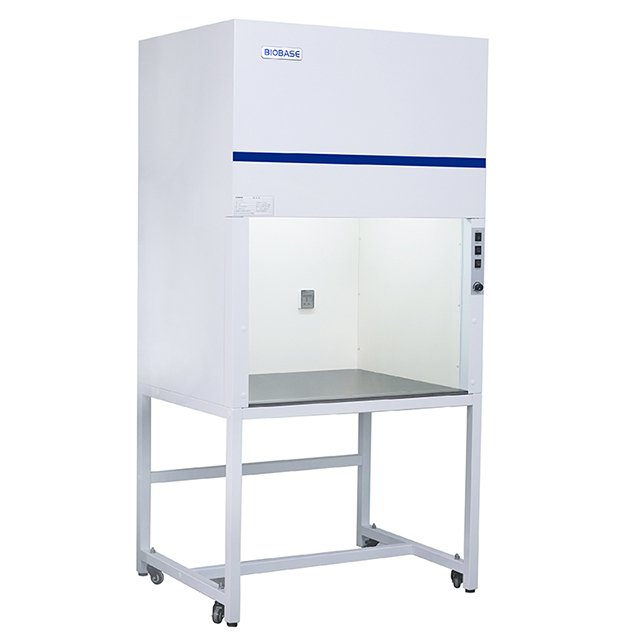

FH700(L)

Technical Parameters:

Model	FH700(L)	FH1000(L)	FH1100(L)	FH1200(L)	FH1300(L)	FH1500(L)	FH1800(L)
External Size(WDH)mm(Tabletop Type)	7006501260	10008001260	11008001260	12008001260	13008001260	15008001260	18008001260
External Size(WDH)mm(Integral Type)	7006502000	10008002000	11008002000	12008002000	13008002000	15008002000	18008002000
Internal Size(WDH)mm	580570835	880720835	980720835	1080720835	1180720835	1380720835	1680720835
Airflow Pattern	Negative pressure exhaust
Max Opening	500mm
Air Velocity	0.3~0.8m/s
System Exhaust Volume	420m³/h	630m³/h	700m³/h	770m³/h	840m³/h	980m³/h	1190m³/h
Noise	≤68dB
LED Lamp	4W*2	8W	12W				16W
Illumination	≥300lx
Vibration	Amplitude≤5μm
Consumption	400W
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Exterior Material	Cold-rolled steel with anti-bacteria power coating, electrostatic spraying
Interior Material	5mm compact laminate board
Standard Accessories(Tabletop Type)	Socket, fan, LED light, 300*5m PVC pipe
Standard Accessories(Integral Type)	Socket, fan, LED light, 300*5m PVC pipe, Base cabinet, Solid core physical and chemical board
Optional Accessory(Integral Type)	Water tap, Gas tap, Water sink
Number of Users	1	1	1~2				2~3
Gross Weight(Tabletop Type)	85	124	135	146	153	174	198
Gross Weight(Integral Type)	110	160	169	179	190	211	236
Package Size(WDH)mm(Tabletop Type)	8407901460	11409401460	12409401460	13409401460	14409401460	16409401460	19409401460
Package Size(WDH)mm(Integral Type)	8409501460	114011001460	124011001460	134011001460	144011001460	164011001460	194011001460
