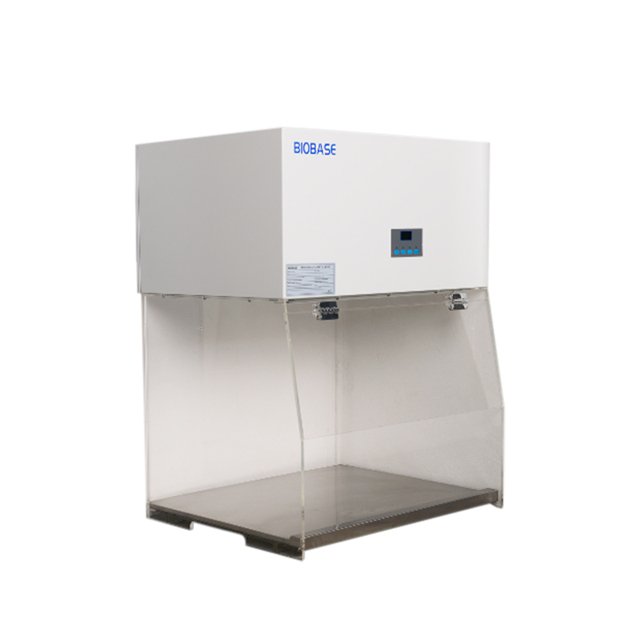

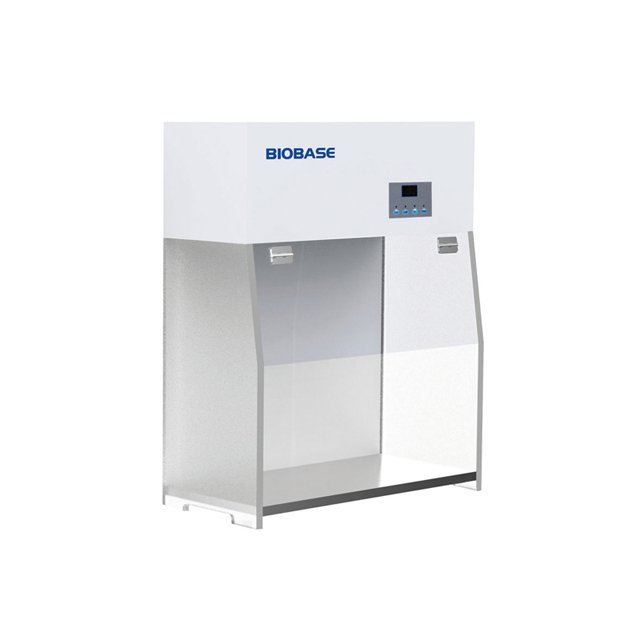

Class I Biological Safety Cabinet

Biosafety Cabinet

Model	BYKG-I BYKG-II BYKG-III BYKG-V
Brand	BIOBASE

Features:
1. UV lamp for sterilization.

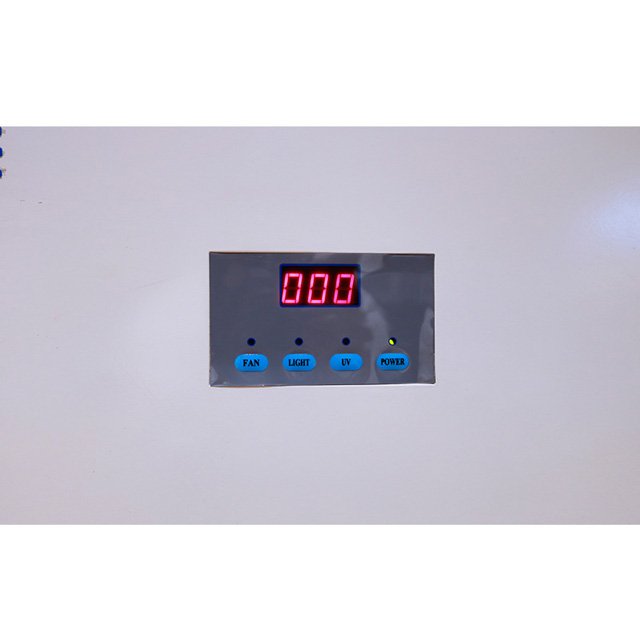

2. Soft touch control panel, LCD display(Only BYKG-III).

3. Energy-saving, high efficiency, low noise.

4. With memory function in case of power-failure.

5. One piece 304 stainless steel work stable, easy for cleaning.

6. Stable air flow system; provide firm protection to people and environment.

BYKG

Air Pattern of Class I Biosafety Cabinet:

Technical Parameters:

Model	BYKG-I	BYKG-II	BYKG-III	BYKG-V
External Size(WDH)	550395730mm	700550900mm	9007131250mm	11006971900mm
Internal Size(WDH)	540385440mm	680540500mm	800635600mm	968625630mm
HEPA Filter	99.9995% efficiency at 0.3μm
Airflow Velocity	>0.3m/s	0.75~1.0m/s	>0.3m/s	0.75~1.0m/s
Noise	≤60dB	≤55dB	≤60dB	≤67dB

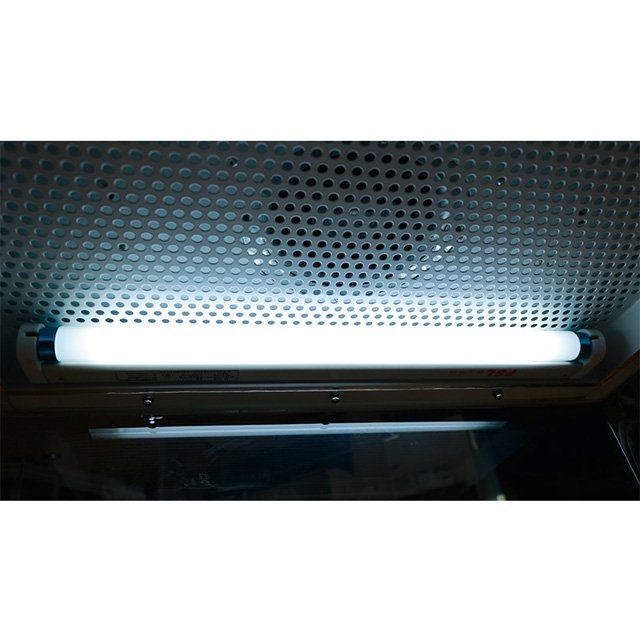

Illuminating Lamp	4W*1 LED lamp	8W*1 LED lamp	8W*1 LED lamp	12W*2 Fluorescent lamp
UV Lamp	15W*1	20W*1	20W*1	20W*1
UV Lamp	Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life.
Power Consumption	150W	160W	400W	350W
Work Surface Height	/	/	/	750mm
Caster	/	/	/	Universal caster
Main Body Construction	PMMA		Cold-rolled steel with anti-bacteria powder coating
Work Table	304 stainless steel
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LED lamp, UV lamp*2			Fluorescent lamp, UV lamp*2, Base stand
Optional Accessory	Electric height adjustable base stand
Gross Weight	38kg	68kg	147kg	185kg
Package Size(WDH)	710550950mm	8707201170mm	10608701440mm	12608602080mm
