Auto ELISA Processor BIOBASE4001

< Back

Elisa / Microplate Reader / Microplate Washer

Model	BIOBASE4001
Brand	BIOBASE

Get Price

Product Description

Features:

1. Adopt the principle of pressure type liquid detection

2. With TIP detection, clot detection function

3. High-precision pipetting, the lowest volume can reach 5μl

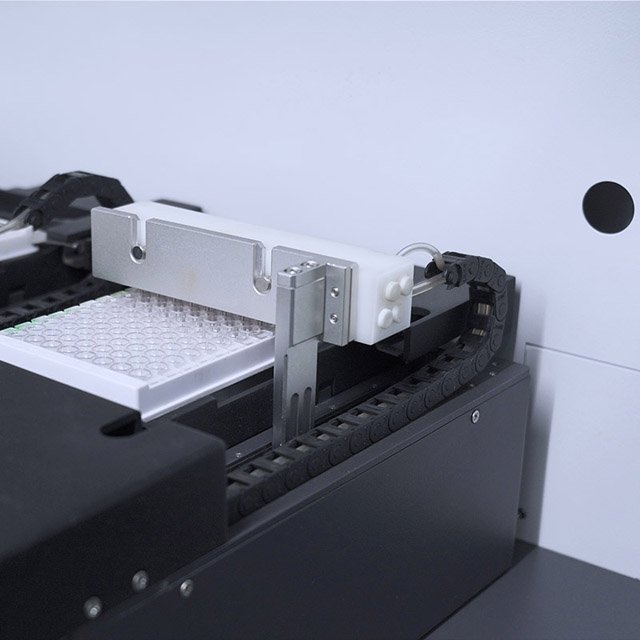

4. Position sensing, real-time monitoring of gripper status

5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes

6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other

Technical Parameters:

Model	BIOBASE4001

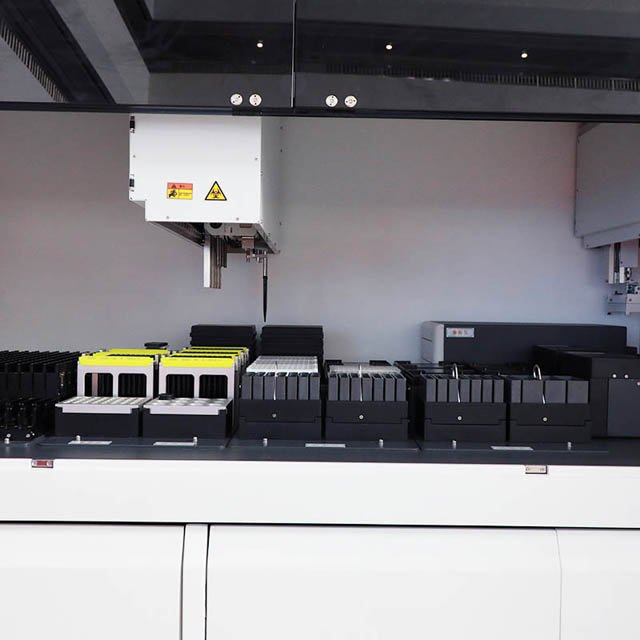

Sample&Reagent Unit	Sample Racks	12*16 push-pull sample rack with detection
	Sampling Channel	4 channels
	Liquid Level Detection	Air pressure level detection, clot detection function
	Tip	1000μl, 5 tip racks
	Pipetting	5μl~1000μl
	Pipetting Precision	100μl: CV≤0.5%, Accuracy≤2.0% 1000μl: CV≤0.5%, Accuracy≤0.5%
	Reagent Position	6 reagent racks, reagent tanks with detection

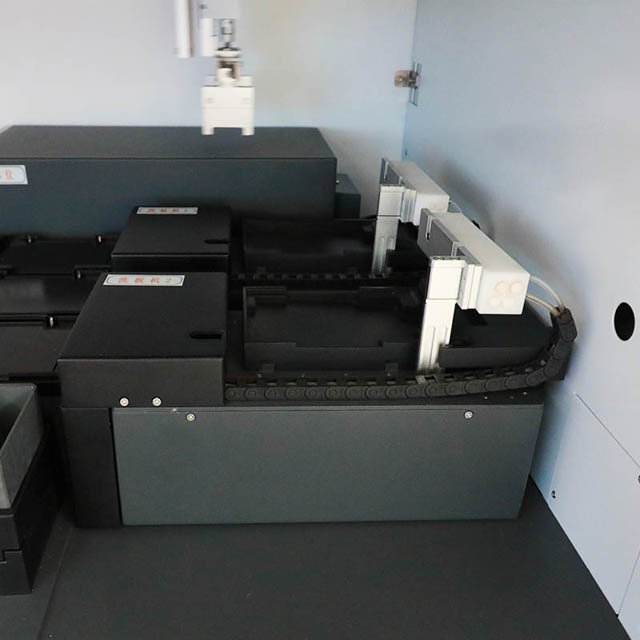

Washing Unit	Washer	2 units
	Washing Head	16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery
	Injection Uniformity	CV<1.5%
	Washing Residual	<1μl

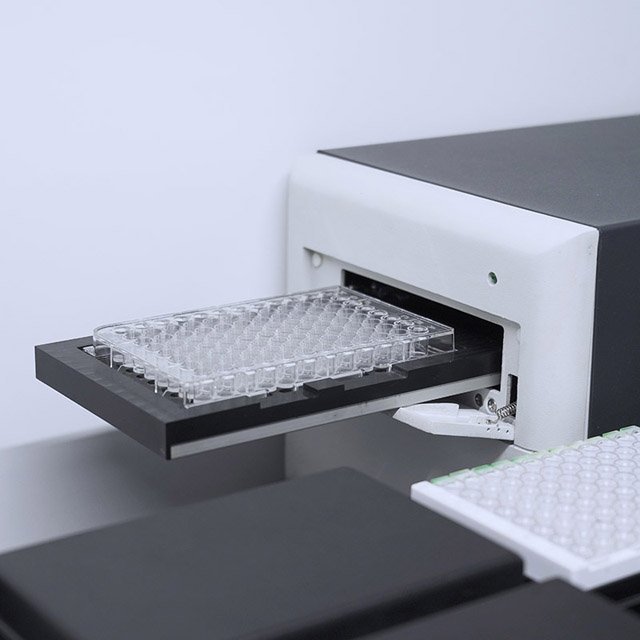

Reading Unit	Reading Channels	8 independent photometric channels, mono and dichromatic reading
	Linear Range	0.000~3.000Abs
	Repeatability	CV≤1.0%
	Stability	≤±0.003Abs
	Optical Filters	4 standard filters(405, 450, 492, 630nm) Total 10 filters positions
	Reading Accuracy	≤±0.02Abs from 0.0 to 1.0OD ≤±0.03Abs from 1.0 to 2.0OD
	Sensitivity	≥0.01mg/L
	Channel Difference	≤0.02Abs
Incubation Unit	Incubators	12 shaking incubators
	Cover Positions	2(12 covers)
	Heating Method	Dry heating with cover
	Shaking Function	Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm
	Temperature Range	RT to 60 °C
	Temperature Uniformity	0.5℃
	Temperature Fluctuation	±0.5℃
Data Management	Software	Above Windows 7 system
	LIS System	Bi-direction, support HL7 protocol
	Results	Absorbance and results reviewable by software
	Printer	External optional
	Built-in Scanner	Optional
Other Function	Biosafety Protection	Optional(Negative pressure working zone, HEPA filter)
	Disinfection	UV lamp
	Lighting	LED
	IAP Function	Firmware can be upgraded online at any time
Working Condition	Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
	Temperature	10~40℃
	Humidity	30~80%
Size&Weight	External Size (WDH)	17751901683mm
	Net Weight	445kg
	Package Size(WDH)mm	Machine: 19459501150 Base Stand: 1945950995 Accessories: 1370930530
	Gross Weight(kg)	Machine: 364.5 Base Stand: 208.5 Accessories: 97

Pictures
