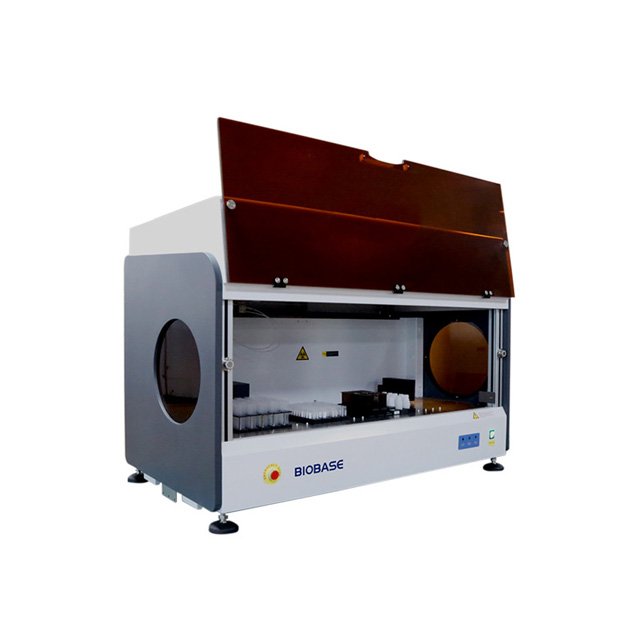

Auto ELISA Processor BIOBASE2000

Elisa / Microplate Reader / Microplate Washer

Model	BIOBASE 2000
Brand	BIOBASE

Features:

1. 1 robotic arm, 2 pipetting probes(10~1000μl).

2. 4 units 96 well microplates(independent incubating).

3. 1 unit reader&washer(auto reading and washing).

Technical Parameters:

Model	BIOBASE2000
Sample Unit	Sample Racks	Standard 192 sample positions(expandable, up to 552)
	Pipetting	10~1000μl
	Dispensing System	2 aspirating and dispensing probe( X-Y-Z movement)
Reagent Unit	Reagent Position	23 reagent racks, editable
	Pipetting Range	10~1000μl, 1μl stepping
	Pipetting Precision	(100μl)CV≤0.5%
Washing Unit	Dispensing Time	4 minutes to whole 96 to microplates
	Washing Probes	Two line 8-nozzle manifolds
	Wash Containers	Cleaning fluid(15L), waste water(25L), Buffer 1(5L), Buffer 2(2L), Buffer 3(2L), Buffer 4(2L), with liquid level-sensing, liquid shortage and full alarm
	Waste Containers	25L with waste full sensor
	Washing Residual	<2μl
Reading Unit	Reading Channels	8 independent photometric channels, mono anddichromatic reading
	Absorbance	0.0~3.0OD
	Spectral Range	400~700nm
	Optical Filters	2 standard filters(450, 630nm); 2 more on request (405nm/450nm/492nm/630nm)
	Reading Accuracy	±1% from 0~1.5OD, ±2% from 1.5~3.0OD
Incubation Unit	Incubators	4 independent units
	Temperature Range	RT to 45℃
	Temperature Accuracy	±0.5℃
Data Management	Software System	Above Windows 7 system
	LIS System	Bi-direction, support HL7 protocol
	Results	Absorbance and results reviewable by software
	Printer	External optional
Working Conditions	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W
	Temperature	10~30℃
	Humidity	30%~80%
Size&Weight	External Size(WDH)	1235705875mm
	Net Weight	146kg
	Package Size(WDH)	13808601415mm
	Gross Weight	220kg
