Auto ELISA Processor BIOBASE1001

< Back

Elisa / Microplate Reader / Microplate Washer

Model	BIOBASE1001
Brand	BIOBASE

Get Price

Product Description

Features:

1. Adopt the principle of pressure type liquid detection.

2. With TIP detection, clot detection function.

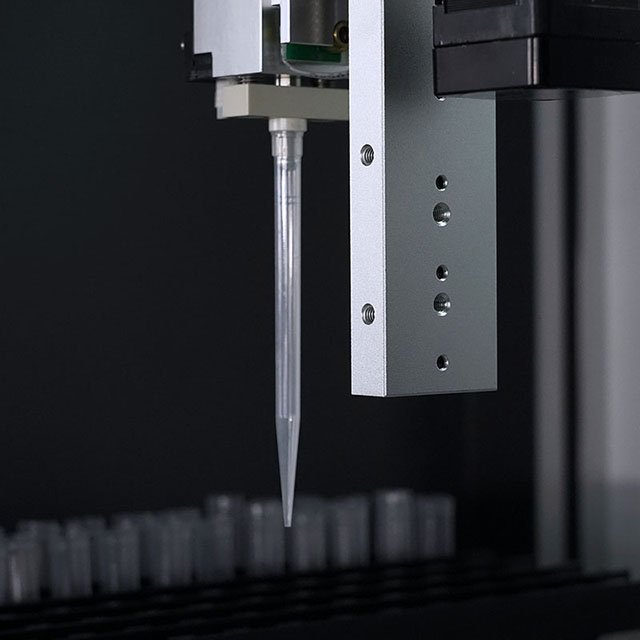

3. High-precision pipetting, the lowest volume can reach 10μl.

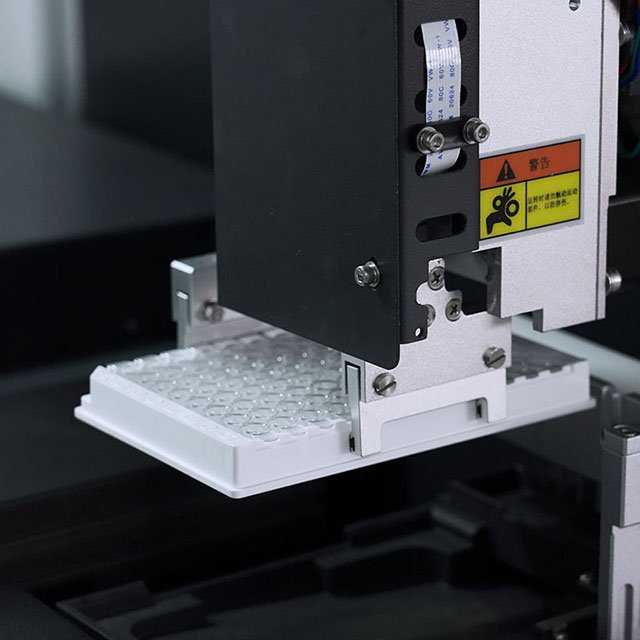

4. Position sensing, real-time monitoring of gripper status.

5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes.

6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other.

Technical Parameters:

Model	BIOBASE1001

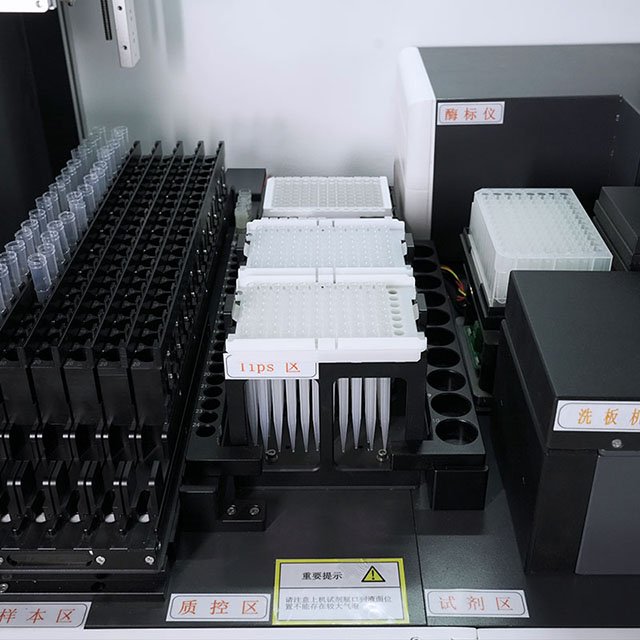

Sample&Reagent Unit	Sample Racks	6*20 push-pull sample rack
	Sampling Channel	1 channel
	Liquid Level Detection	Air pressure level detection, clot detection function
	Tip	1000μl, 2 tip racks
	Pipetting	10μl~1000μl
	Pipetting Precision	100μl: CV≤1%, Accuracy≤2.5% 1000μl: CV≤0.5%, Accuracy≤1%
	Reagent Position	2 reagent racks
	Dilution Plate Position	1 dilution plate position with incubation and shaking

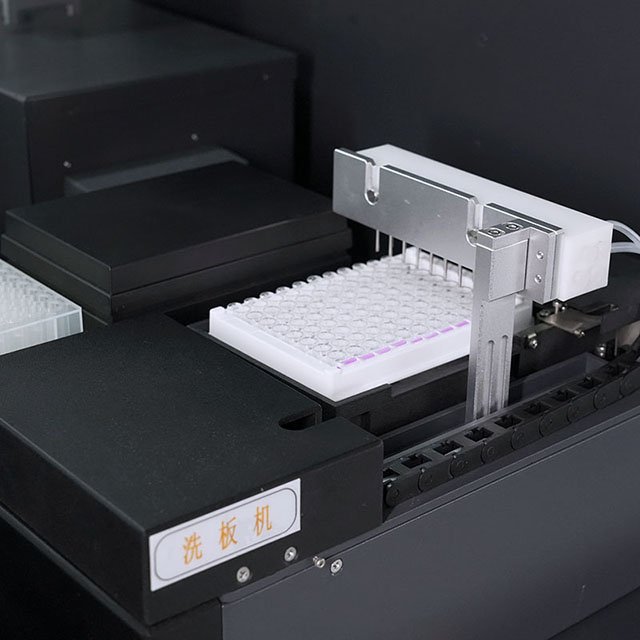

Washing Unit	Washer	1 unit
	Washing Head	16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery
	Injection Uniformity	CV<1.5%
	Washing Residual	<2μl
Reading Unit	Reading Channels	8 independent photometric channels, mono and dichromatic reading
	Absorbance Range	0.000~4.000Abs
	Linear Range	0.000~3.000Abs
	Repeatability	CV≤1.0%
	Stability	≤±0.003Abs
	Spectral Range	400~700nm
	Optical Filters	4 standard filters(405, 450, 492, 630nm) Total 10 filters positions
	Reading Accuracy	≤±0.02Abs from 0.0 to 1.0 OD ≤±0.03Abs from 1.0 to 2.0 OD
	Sensitivity	≥0.01mg/L
	Channel Difference	≤0.02Abs
Incubation Unit	Incubators	2 shaking incubators
	Cover Position	1(2 covers)
	Heating Method	Dry heating with cover
	Shaking Function	Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm
	Temperature Range	RT to 60 °C
	Temperature Uniformity	±0.5℃
	Temperature Fluctuation	±0.5℃
Data Management	Software	Above Windows 7 system
	LIS System	Bi-direction, support HL7 protocol
	Results	Absorbance and results reviewable by software
	Printer	External optional
	Built-in Scanner	Optional
Other Function	Biosafety Protection	Optional(Negative pressure working zone, HEPA filter)

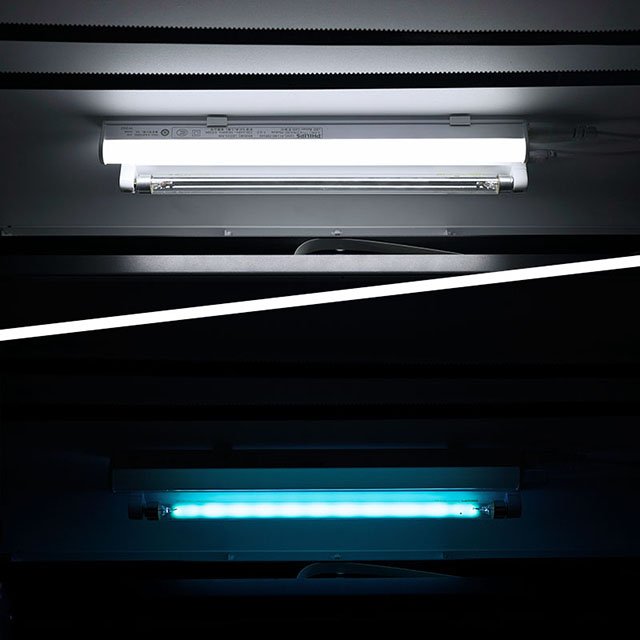

	Disinfection	UV lamp
	Lighting	LED
	IAP Function	Firmware can be upgraded online at any time
Working Condition	Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
	Temperature	10~40℃
	Humidity	30~80%
Size&Weight	External Size(WDH)	870680870; 465475700mm
	Net Weight	155kg; 55kg
	Package Size(WDH)	10508501150mm 1100820750mm
	Gross Weight	210kg; 105kg

Pictures
