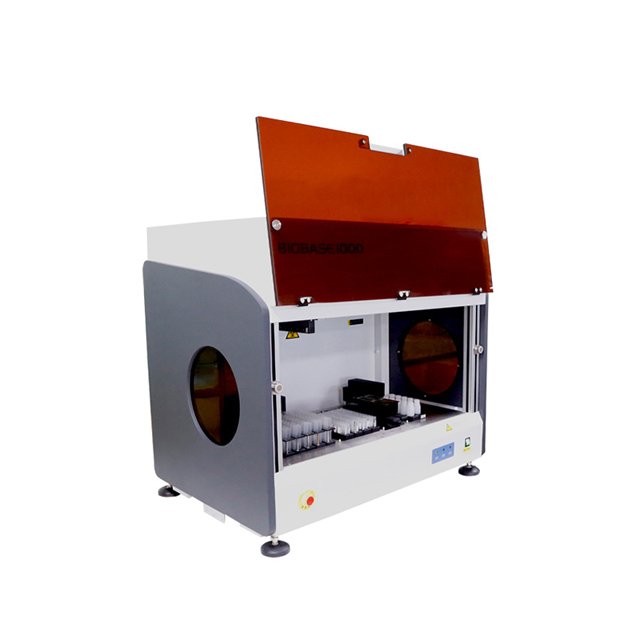

Auto ELISA Processor BIOBASE1000

Elisa / Microplate Reader / Microplate Washer

Model	BIOBASE 1000
Brand	BIOBASE

Features:

1. 1 robotic arm, 1 pipetting probe(10~1000μl).

2. 2 units 96 well microplates(independent incubating).

3. 1 unit reader&washer(auto reading and washing).

Biobase1000

Technical Parameters:

Model	BIOBASE1000

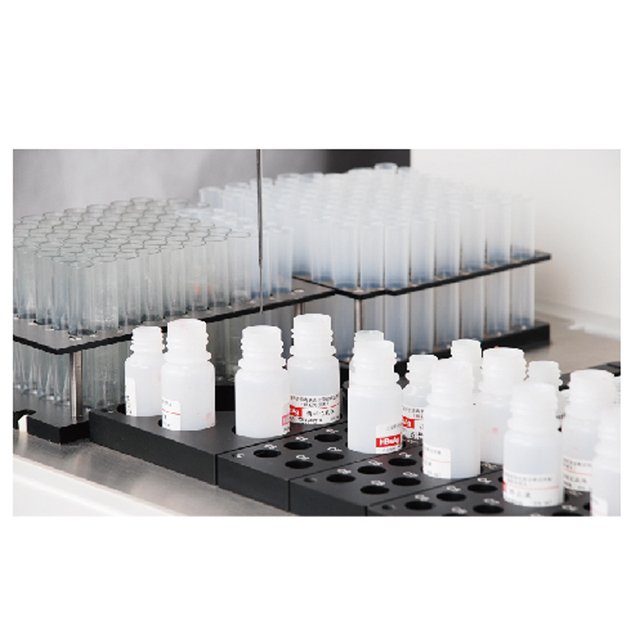

Sample Unit	Sample Racks	Standard 192 sample position (expandable, up to 384)
	Pipetting	10~1000μl
	Dispensing System	1 aspirating-dispensing probe(X-Y-Z movement)
Reagent Unit	Reagent Racks	Universal reagent position: Standard 6 universal reagent positions(expandable, up to 32); Original reagent bottle: Standard 20 reagent bottles position(expandable, up to 80)
	Pipetting Range	10~1000μl, 1μl stepping
	Pipetting Precision	(100μl)CV≤0.5%
	Dispensing Time	5 minutes to whole 96 well microplates
Incubation Unit	Incubation	2 independent incubators
	Temperature Range	RT to 45 °C
	Temperature Accuracy	±0.5°C
Washing Unit	Washing Probes	Two line 8-nozzle manifolds
	Wash Containers	2 wash buffers 2L, 1 distilled water, 1 waste water
	Washing Residual	<2μl
Reading Unit	Reading Channels	8 independent photometric channels, mono and dichromatic reading
	Absorbance	0.0~3.0OD
	Spectral Range	400~700nm
	Optical Filters	2 standard filters(450, 630nm); 2 more on request(405nm/450nm/492nm/630nm)

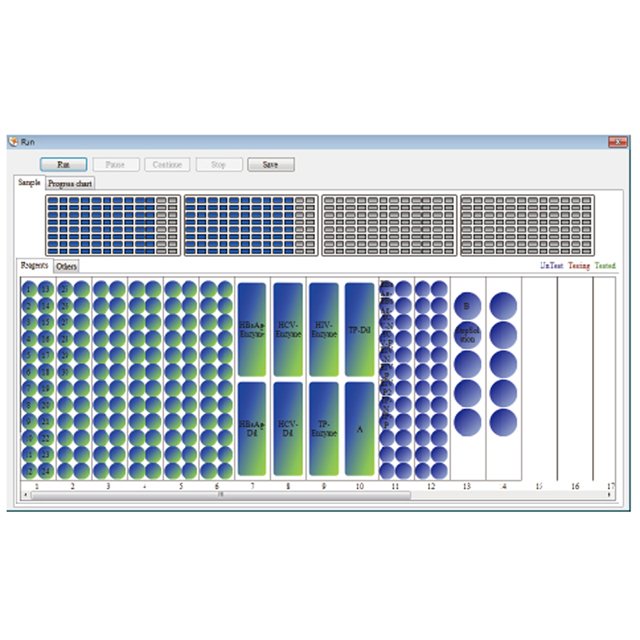

Data Management	Software	Windows 7
	LIS System	Bi-direction, support HL7 protocol
	Results	Absorbance and results reviewable by software
	Printer	External optional
Working Conditions	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W
	Temperature	10~30℃
	Humidity	30~80%
Size&Weight	External Size(WDH)	935665860mm
	Net Weight	112kg
	Package Size(WDH)	11159201398mm
	Gross Weight	160kg
