-86℃ Freezer 418L 608L – Mariken Weida Corporation

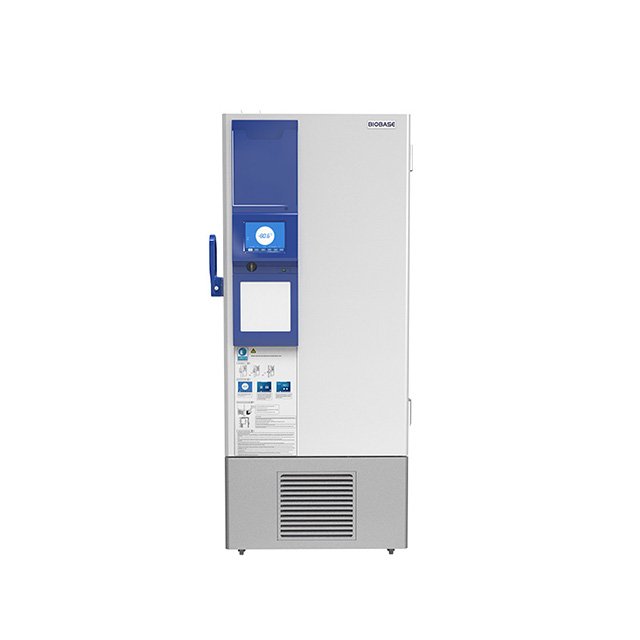

-86°C Freezer

Model	BDF-86V418T BDF-86V608T
Brand	BIOBASE

Technical Parameters:

Model	BDF-86V418T	BDF-86V608T
Capacity	418L	608L
Shelf	3pcs, S.S.
Refrigeration Type	Direct refrigeration
Defrosting Type	Manual
Refrigerant/g	Mixed refrigerant, cfc-free
Noise	60dB(A)
Ambient Temp.	10~32℃
Temp. Range	-40℃~-86℃
Evaporator	Built-in coil, copper pipe
Condenser	Copper tube and aluminum fin
Sensor	PTC100
Thermostat	Electronic thermostat
Display	LCD
Power Supply	110/220V, 50/60Hz
Power	1070W/1870VA	1110W/1870VA
Current	8.5A
Internal Material	S.S.304
External Material	Sprayed cold-rolled steel
Lagging	Foamed polyurethane cyclopentane
Audible and Visual Alarm	High and low temperature alarm, Power fault alarm, Thermostat fault alarm, Door switch alarm
Interface	RS485
Door	Lockable outer door, 2 inner doors
Temp. Test Port	1, φ30mm
Standard Accessory	USB port
Optional Accessory	RS485
Net Weight	315kg	360kg
Gross Weight	345kg	390kg
Internal Size(WDH)	6006121150mm	6207551280mm
External Size(WDH)	9809881945mm	100011471996mm
Package Size(WDH)	113011702150mm	115012802210mm
