Hematology Analyzer

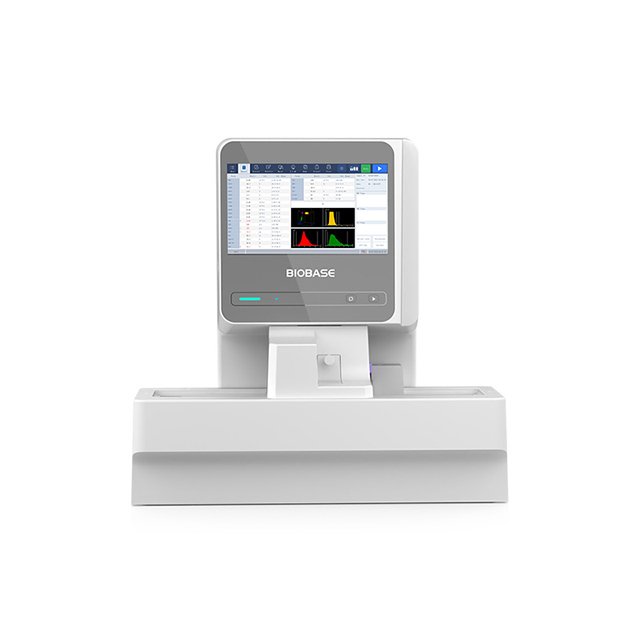

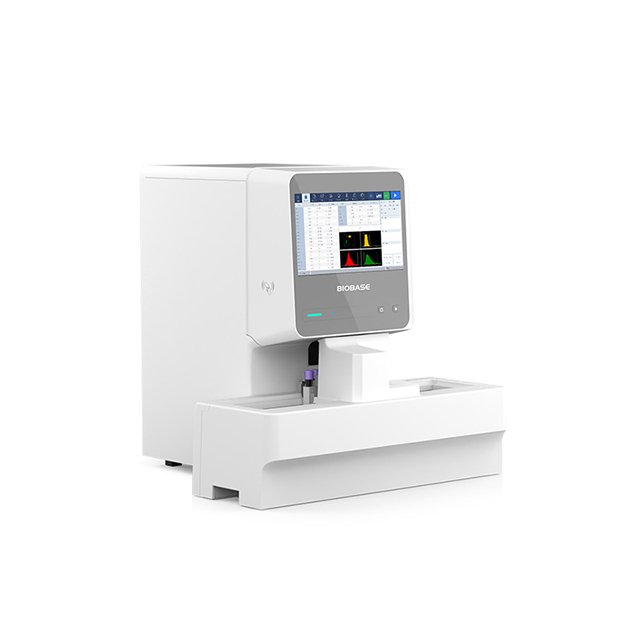

5-Part Auto Hematology Analyzer BK-6500

Model

BK-6500

Brand

BIOBASE
Get Price

Product Description

Features:

1. Throughput 70t/h.

2. 14 inch touch screen.

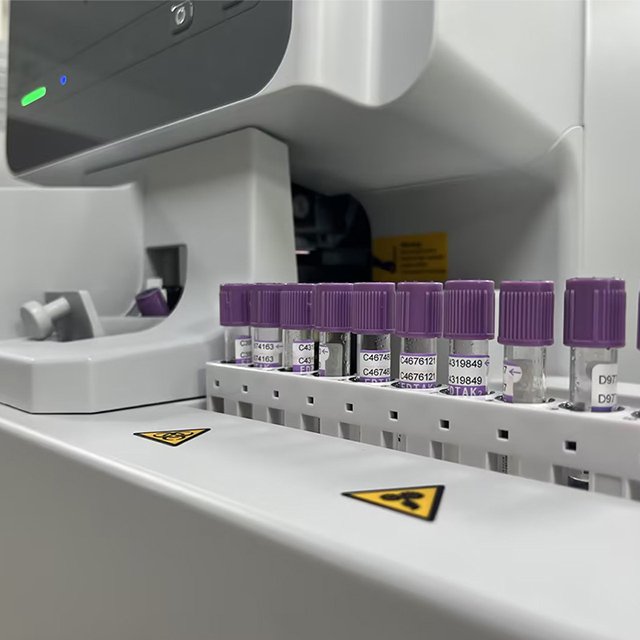

3. 50 sample positions, automatic loading, mixing and sampling

4. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.

5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.

6. Large storage capacity: 100,000 results(including histogram, scattergram, patient information).

7. 50 Flags including MALARIA and DENGUE Flags to help analysis results

BK-6500


Model BK-6500
Throughput 70 tests/hour
Assay Items 5 parts, 25 parameters, 3 histograms (WBC/BASO, RBC, PLT), 3D scattergram
Principle Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test
Test Mode CBC mode, CBC+DIFF mode, Venous whole blood, Capillary whole blood, Prediluted
Sample Volume CBC+DIFF mode: ≤20μl, CBC mode: ≤10μl
Parameters 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#
6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC#
Storage Up to 100,000 results including histograms, scattergrams, and patient information
Display 14-inch touch screen, resolution 1366*768
Interface 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader
Loading Position 50 sample positions
Power Supply AC100~240V, 50/60Hz; 300VA
Package Size (W*D*H) Main Machine: 680*580*895mm, Accessories: 950*500*580mm
Gross Weight Main Machine: 60kg, Accessories: 27.6kg
Reagent Package Size 330*330*330mm, 400*290*240mm, 400*290*240mm
Reagent Gross Weight 22kg, 2kg, 1kg
